FORGET THE NUMBERS. MUTE THE SPECULATION. LET THE OTHER GUYS INVENT CUTE ALTERNATIVES FOR “CROSS COUNTRY.” STEER CLEAR OF PIGEON HOLES AND LIMITING BELIEFS. STRAP ON YOUR BLINDERS AND GO GET LOST. THEN DECIDE WHAT THE SB120 MEANS TO YOU. AND YOU ALONE
DEFINITION READY.
TRAIL. CHECK MATE.
CRUSHING SOULS ON THE DESCENT IS MORE THAN HALF THE FUN. AND A HELL OF A LOT MORE THAN HALF THE POINT. THE SB120 IS WICKED QUICK IN YOUR DIRECTION OF CHOICE.
FRAME HIGHLIGHTS
- NEW short travel trail frame platform
- NEW Switch Infinity assembly on T-Series
- NEW Threaded bottom bracket
- NEW High-clearance downtube
- NEW Dual-density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure, fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Ultra-compact shock extender
- Boost spacing
- Sizes XS-XXL
Specifications:

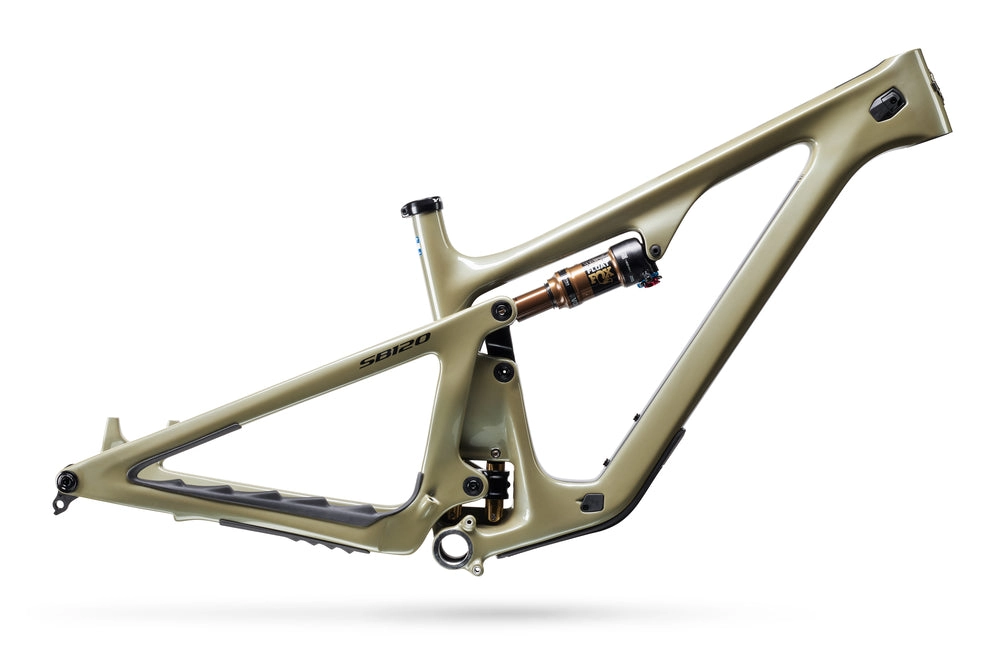

FRAME: TURQ Series carbon fiber frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing,
148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
REAR SHOCK: FOX FLOAT X2
FRAME TRAVEL: 120MM
FORK TRAVEL: 130MM
LEVERAGE RATE: 11%
WHEEL SIZE: 29"
HEAD TUBE ANGLE: 66.5º
EFFECTIVE SEAT TUBE ANGLE: 76.5º
FRAME HIGHLIGHTS
- NEW short travel trail frame platform
- NEW Switch Infinity assembly on T-Series
- NEW Threaded bottom bracket
- NEW High-clearance downtube
- NEW Dual-density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure, fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Ultra-compact shock extender
- Boost spacing
- Sizes XS-XXL

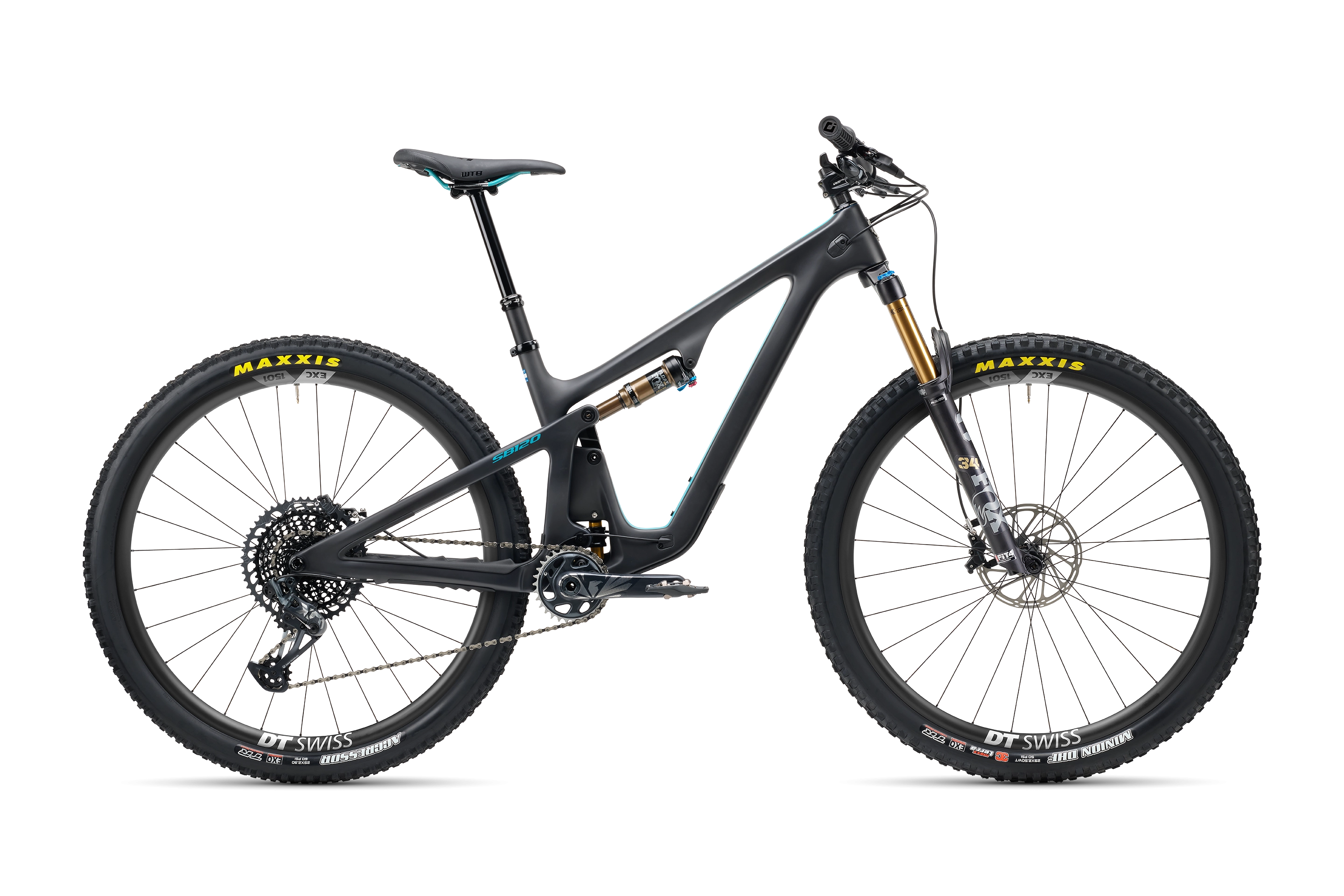

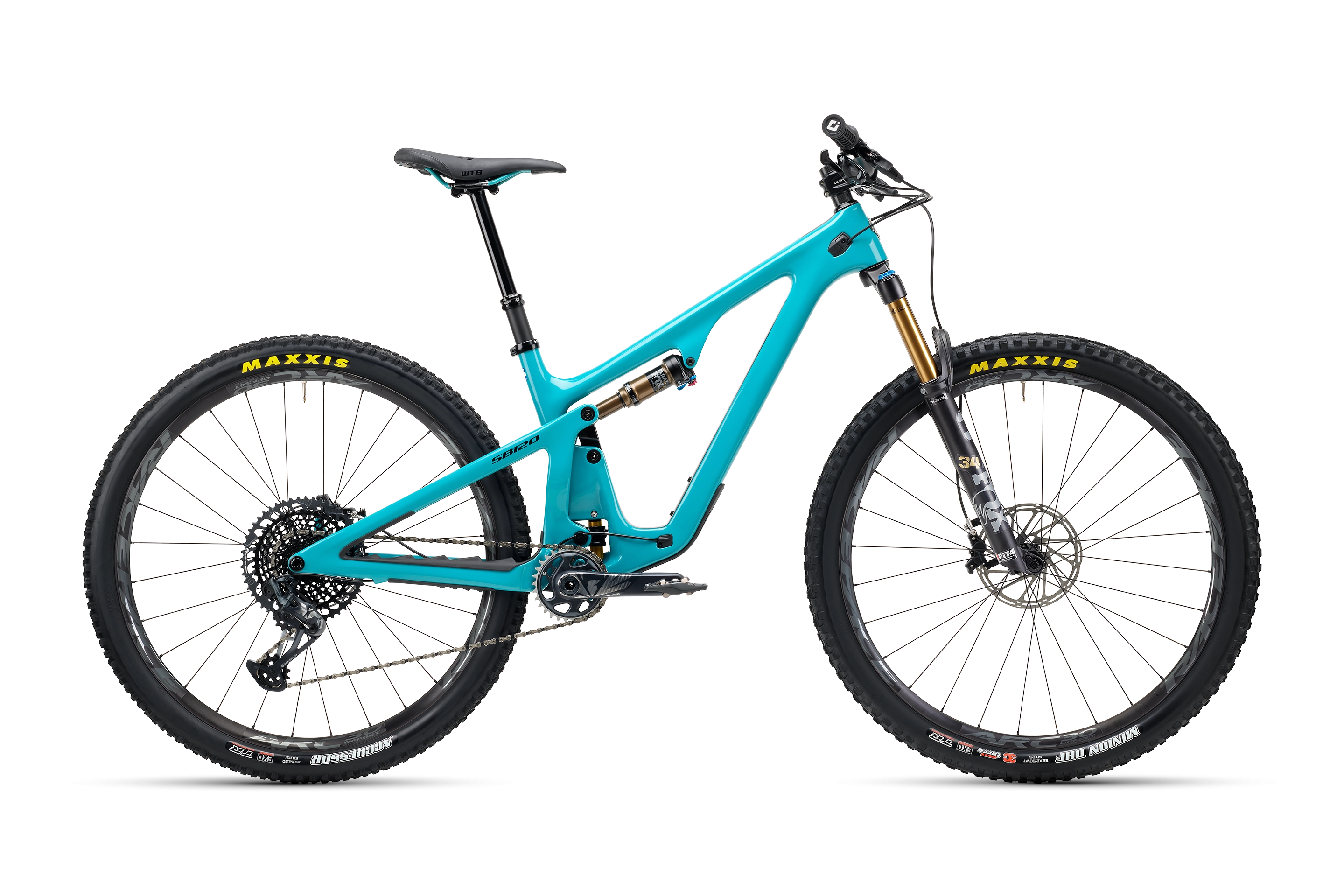

BUILD KIT:
DETAILS | TURQ Carbon Frame, 130mm Fox Factory 34 and Float DPS, SRAM X01 Eagle and G2 RSC Brakes |
| FRAME | TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. |
| FORK | FOX FACTORY 34 FIT4/130MM |
| MATERIAL | TURQ SERIES |
| WEIGHT | 29.38 |
| TRAVEL | 120MM (4.7") |
| REAR SHOCK | FOX FACTORY FLOAT DPS |
| WHEELSET | RACEFACE ARC OFFSET 30MM/DT SWISS 350UPGRADABLE |
| REAR DER | SRAM X01 EAGLE |
| SHIFT | SRAM X01 EAGLE |
| CRANK | SRAM X1 EAGLE CARBON 30T 170MM |
| BB | SRAM DUB BSA 73 |
| CASSETTE | SRAM X01 EAGLE 1295 10-52 |
| CHAIN | SRAM GX EAGLE |
| BRAKES | SRAM G2 RSC |
| ROTORS | SRAM CENTERLINE 180/SRAM CENTERLINE 180 |
| POST | FOX TRANSFER 31.6MM / XS: 125MM, SM: 150MM, MD: 175MM, LG-XXL: 200MM |
| FRONT TIRE | MAXXIS MINION DHF 2.5 EXO |
| REAR TIRE | MAXXIS AGGRESSOR 2.3 EXO |
| HEADSET | CANE CREEK 40 INTEGRATED |
| BAR | YETI CARBON 35X780MM |
| STEM | BURGTEC ENDURO MK3 35X50MM |
| GRIPS | ODI ELITE PRO |
| SEAT | SILVERADO CUSTOM |
| UPGRADES | DT Swiss EXC 1501 Carbon Wheelset |
