FORGET THE NUMBERS. MUTE THE SPECULATION. LET THE OTHER GUYS INVENT CUTE ALTERNATIVES FOR “CROSS COUNTRY.” STEER CLEAR OF PIGEON HOLES AND LIMITING BELIEFS. STRAP ON YOUR BLINDERS AND GO GET LOST. THEN DECIDE WHAT THE SB120 MEANS TO YOU. AND YOU ALONE
DEFINITION READY.
TRAIL. CHECK MATE.
CRUSHING SOULS ON THE DESCENT IS MORE THAN HALF THE FUN. AND A HELL OF A LOT MORE THAN HALF THE POINT. THE SB120 IS WICKED QUICK IN YOUR DIRECTION OF CHOICE.
FRAME HIGHLIGHTS
- NEW short travel trail frame platform
- NEW Switch Infinity assembly on T-Series
- NEW Threaded bottom bracket
- NEW High-clearance downtube
- NEW Dual-density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure, fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Ultra-compact shock extender
- Boost spacing
- Sizes XS-XXL
Specifications:

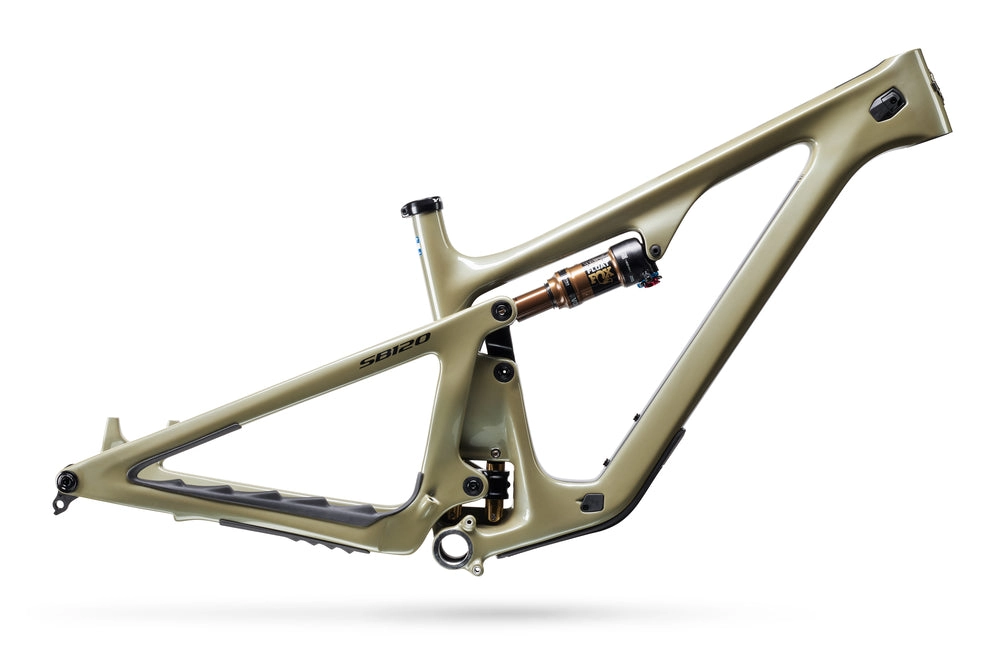

FRAME: C/Series carbon fiber frame, Switch Infinity suspension technology, threaded bottom bracket, fully enclosed internal cable routing,
148mm x 12mm BOOST dropouts, sealed Enduro Max pivot bearings, integrated derailleur hanger, and axle.
REAR SHOCK: FOX FLOAT X2
FRAME TRAVEL: 120MM
FORK TRAVEL: 130MM
LEVERAGE RATE: 11%
WHEEL SIZE: 29"
HEAD TUBE ANGLE: 66.5º
EFFECTIVE SEAT TUBE ANGLE: 76.5º
FRAME HIGHLIGHTS
- NEW short travel trail frame platform
- NEW Switch Infinity assembly on T-Series
- NEW Threaded bottom bracket
- NEW High-clearance downtube
- NEW Dual-density downtube protection
- Universal Derailleur Hanger (UDH)
- Secure, fully enclosed internal cable management
- Compatible with long dropper posts
- 100% standard sealed Enduro Max bearings
- Floating collet axle pivot design
- Ultra-compact shock extender
- Boost spacing
- Sizes XS-XXL

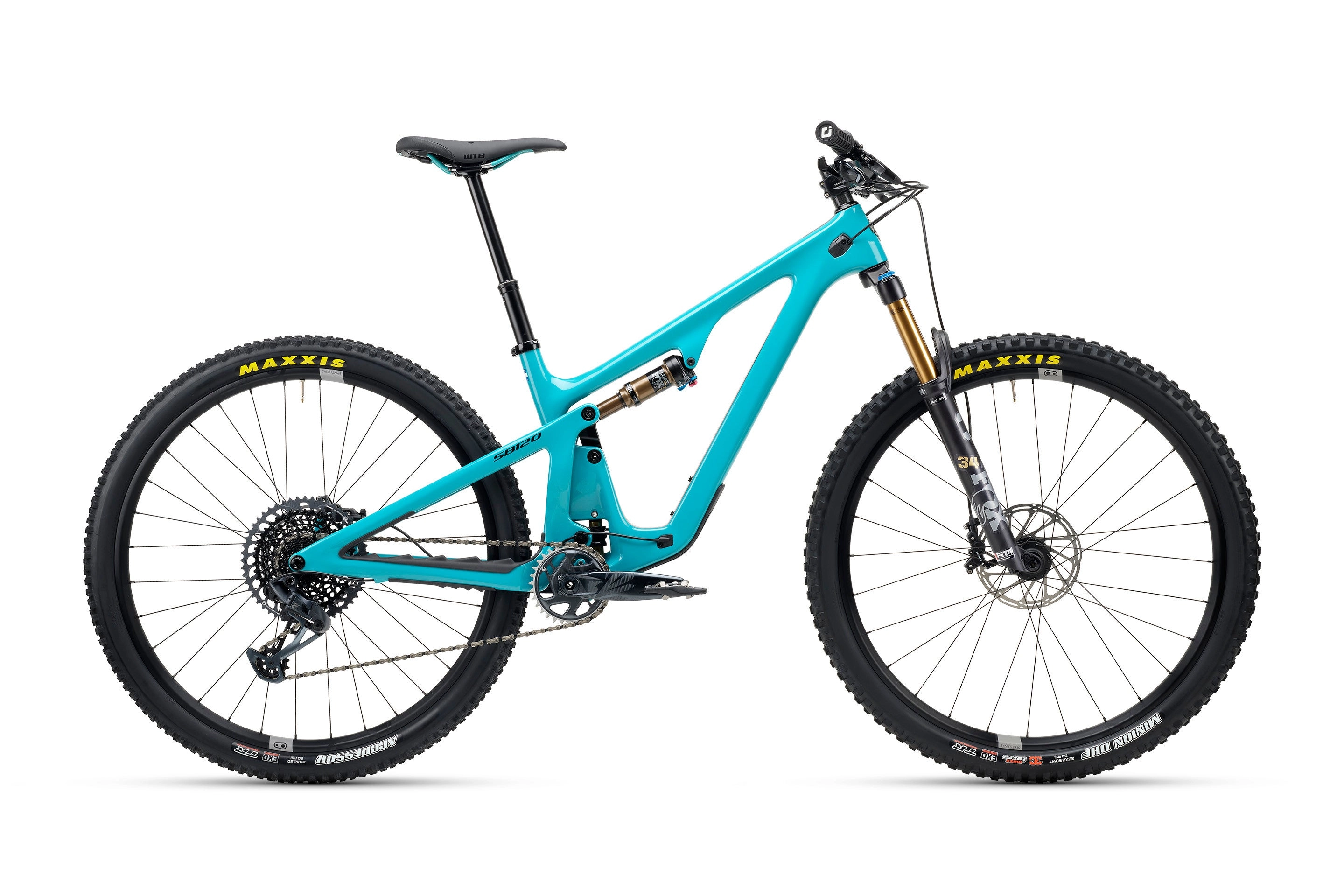

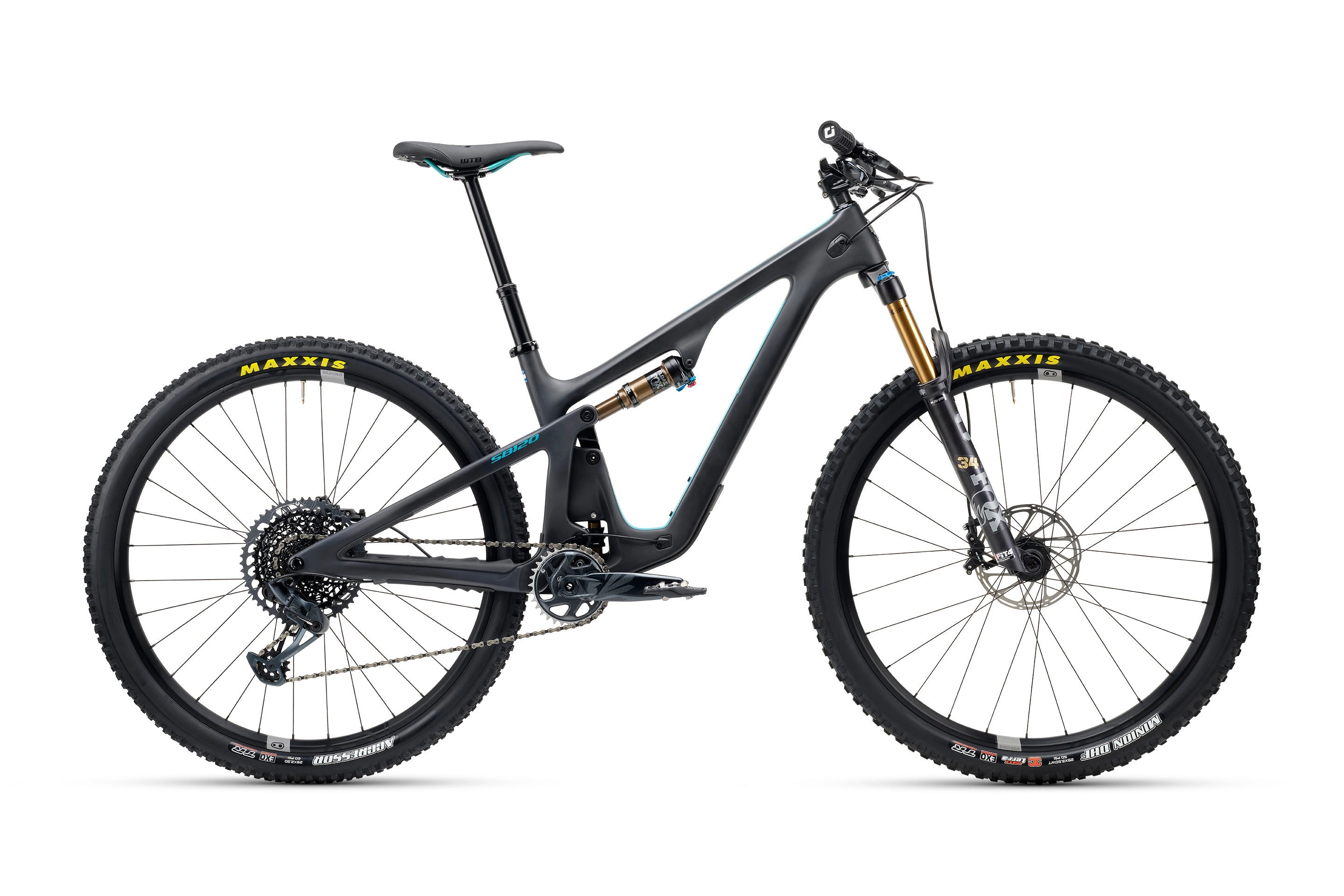

BUILD KIT:
| FORK | FOX PERFORMANCE 34/130MM |
| SHOCK | FOX PERFORMANCE FLOAT DPS |
| TIRE (F) | MAXXIS MINION DHF 2.5 EXO |
| TIRE (R) | MAXXIS AGGRESSOR 2.3 EXO |
| ROTOR (F) | SRAM CENTERLINE 180 |
| ROTOR (R) | SRAM CENTERLINE 180 |
| HEADSET | CANE CREEK 40 INTEGRATED |
| WHEELSET | CRANK BROTHERS SYSTHESIS ENDURO 30MM |
| BB | SRAM DUB BSA 73 |
| GRIPS | ODI ELITE PRO |
| BAR | BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM |
| STEM | BURGTEC ENDURO MK3 35X50MM |
| CRANK | SRAM GX EAGLE 30T 170MM |
| SEAT | SILVERADO CUSTOM |
| BRAKES | SRAM G2 R |
| DERAILLEUR | SRAM GX EAGLE |
| CASSETTE | SRAM GX EAGLE 1275 10-52 |
| CHAIN | SRAM GX EAGLE |
| SHIFTER | SRAM GX EAGLE |
| POST | ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XXL: 210MM |
| UPGRADES | FACTORY SUSPENSION |
